Reconix — Database Architecture

Comprehensive reference for the Reconix database layer: tables, relationships, data flows, state machines, read replica routing, and usage patterns.

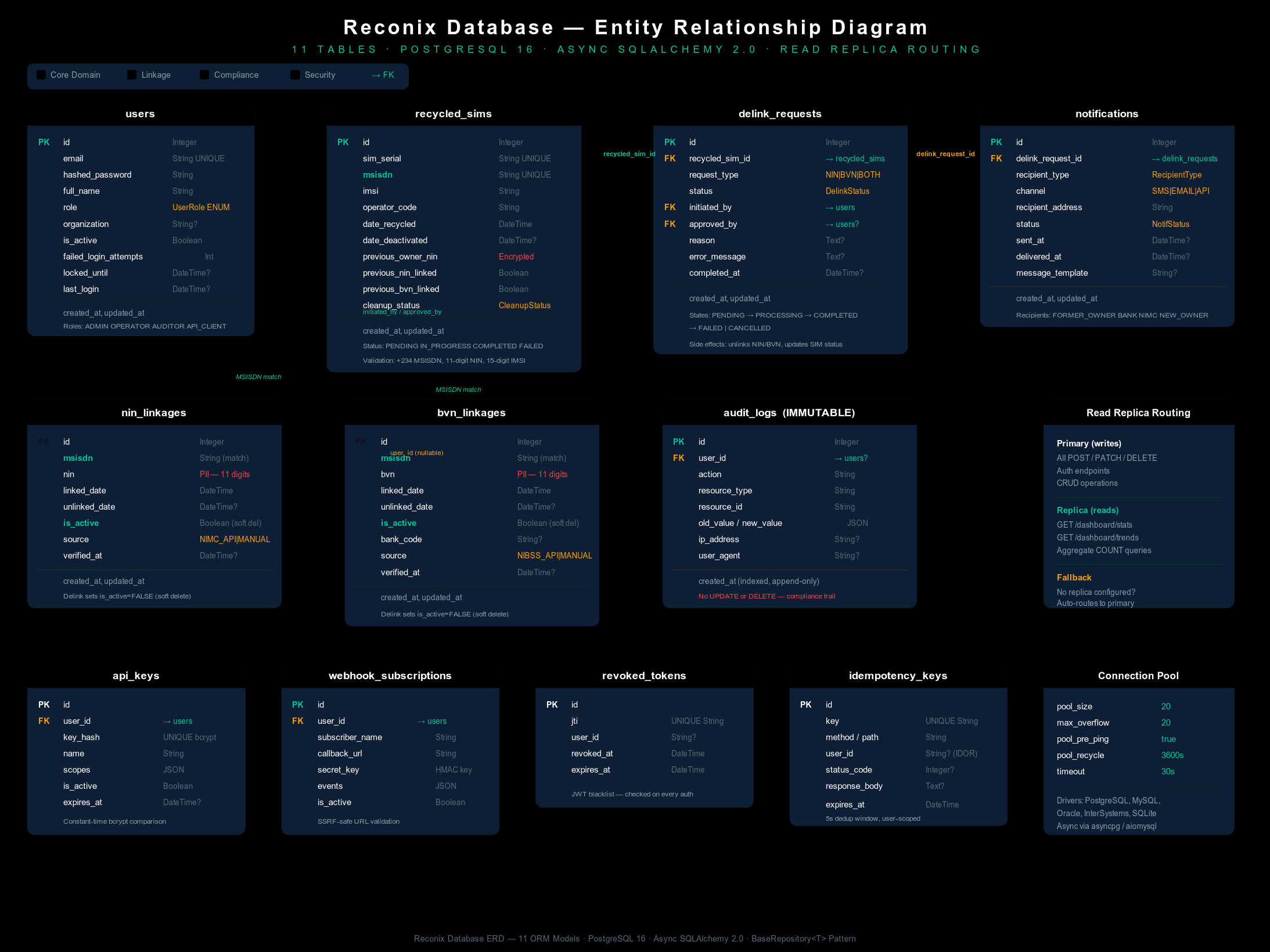

Entity Relationship Diagram

Database ERD

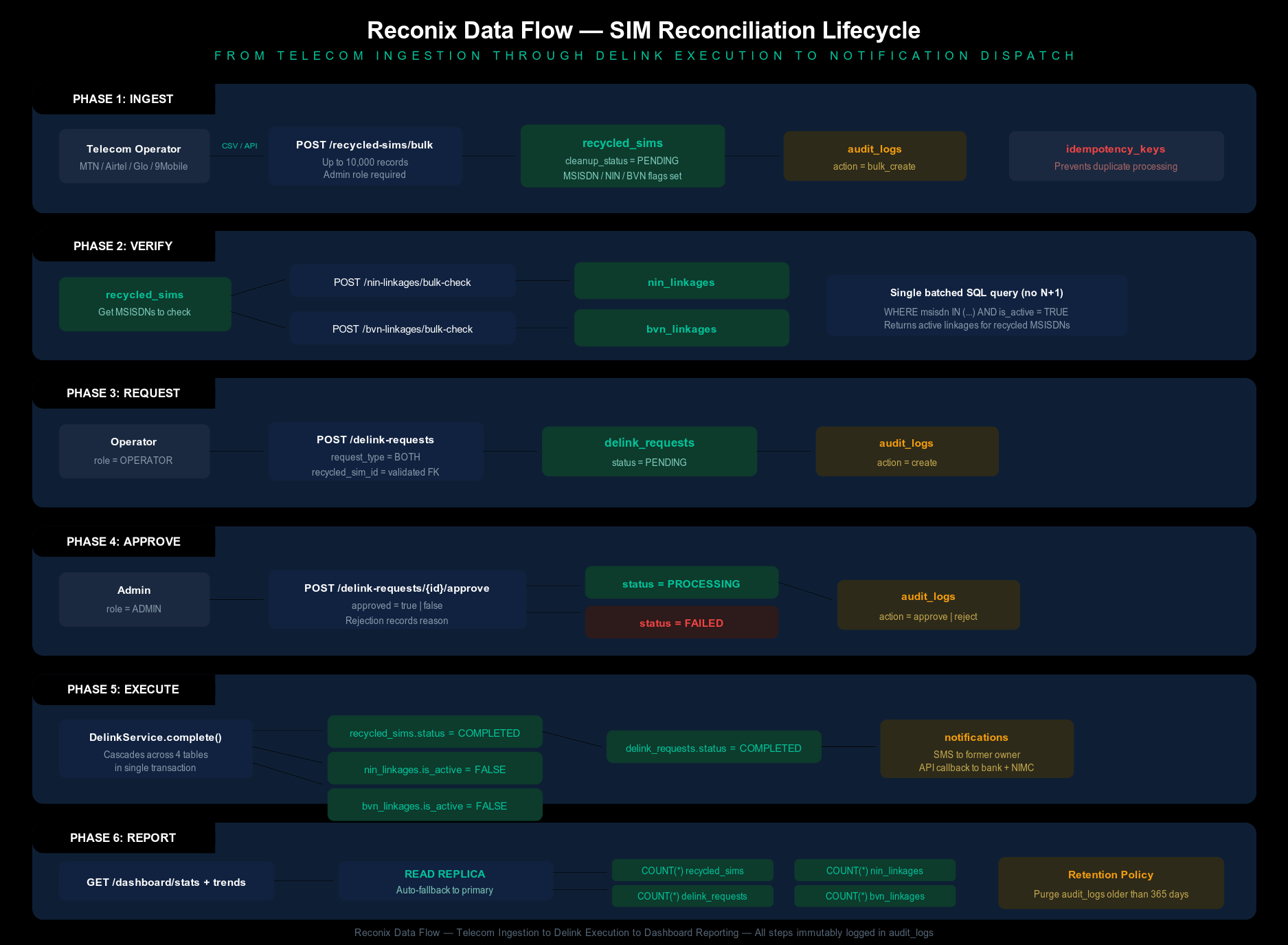

Data Flow Diagram

Database Data Flow

Infrastructure

Component	Technology	Configuration
Primary database	PostgreSQL 16 (asyncpg)	Pool: 20 connections + 20 overflow, pre-ping
Read replica	PostgreSQL 16 (optional)	Pool: 10 connections + 10 overflow, auto-fallback
ORM	SQLAlchemy 2.0 async	Declarative models, `BaseRepository<T>` pattern
Session lifecycle	`async_sessionmaker`	Commit on success, rollback on exception
Pool health	`pool_pre_ping=True`	Stale connection detection before every query
Pool recycling	`pool_recycle=3600`	Force reconnect after 1 hour
Multi-driver	PostgreSQL, MySQL, Oracle	`DatabaseEngineFactory` adapter in `db.py`

Connection Flow

FastAPI Route
    │
    ▼
Depends(get_db)  ─── or ─── Depends(get_read_db)
    │                              │
    ▼                              ▼
async_sessionmaker(primary)   async_sessionmaker(replica)
    │                              │
    ▼                              ▼
AsyncEngine (write pool)      AsyncEngine (read pool)
    │                              │  ← falls back to primary
    ▼                              ▼     if replica not configured
PostgreSQL Primary            PostgreSQL Read Replica

Tables

1. users

Stores all system accounts. Supports four roles with 19 fine-grained permissions. Includes brute-force protection via login attempt tracking and time-based account lockout.

Column	Type	Constraints	Description
`id`	Integer	PK, auto-increment	Unique user identifier
`email`	String(255)	UNIQUE, NOT NULL	Login credential
`hashed_password`	String(255)	NOT NULL	bcrypt hash (12 rounds)
`full_name`	String(255)	NOT NULL	Display name
`role`	Enum(UserRole)	NOT NULL, default=OPERATOR	ADMIN, OPERATOR, AUDITOR, API_CLIENT
`organization`	String(255)	nullable	Employer or agency
`is_active`	Boolean	NOT NULL, default=TRUE	Soft disable without deletion
`failed_login_attempts`	Integer	NOT NULL, default=0	Counter for lockout trigger
`locked_until`	DateTime(tz)	nullable	Account locked until this timestamp
`last_login`	DateTime(tz)	nullable	Last successful authentication

Used by:

POST /auth/login — Authenticate, check lockout, update last_login
POST /auth/refresh — Verify user exists via sub claim
All authenticated routes — get_current_user fetches from this table
UserService — CRUD, increment_login_attempts(), lock_user_account()

Security controls: Constant-time dummy verify on non-existent emails (timing attack mitigation). Account locked for 15 minutes after 5 failed attempts. Same error message for invalid email vs invalid password (no user enumeration).

2. recycled_sims

Core domain entity. Each record represents a SIM card detected as recycled by a telecom operator. Tracks whether old NIN/BVN linkages exist and the cleanup lifecycle.

Column	Type	Constraints	Description
`id`	Integer	PK, indexed	Unique SIM record identifier
`sim_serial`	String(50)	UNIQUE, NOT NULL, indexed	SIM card serial number
`msisdn`	String(20)	UNIQUE, NOT NULL, indexed	Phone number (+234 format)
`imsi`	String(20)	NOT NULL, indexed	International Mobile Subscriber ID
`operator_code`	String(10)	NOT NULL, indexed	MTN, GLO, AIRTEL, 9MOBILE
`date_recycled`	DateTime(tz)	NOT NULL	When the SIM was recycled
`previous_owner_nin`	String(20)	nullable, indexed	Former owner NIN (encrypted at rest)
`previous_nin_linked`	Boolean	NOT NULL, default=FALSE	Does old NIN linkage still exist?
`previous_bvn_linked`	Boolean	NOT NULL, default=FALSE	Does old BVN linkage still exist?
`cleanup_status`	Enum(CleanupStatus)	NOT NULL, default=PENDING	PENDING, IN_PROGRESS, COMPLETED, FAILED

Used by:

POST /recycled-sims — Register a single detected recycled SIM (admin/operator)
POST /recycled-sims/bulk — Bulk upload up to 10,000 records from telecom feed (admin only)
GET /recycled-sims — Paginated list with cleanup_status filter
GET /dashboard/stats — COUNT by cleanup_status for dashboard cards
DelinkService.complete_delink_request() — Sets cleanup_status = COMPLETED

Validation: MSISDN validated against Nigerian format ^(\+234|0)[0-9]{10}$. NIN validated as 11 digits. IMSI validated as 15 digits.

3. nin_linkages

Tracks MSISDN-to-NIN bindings sourced from NIMC. Uses soft-delete pattern: is_active set to FALSE when delinked, preserving the historical record.

Column	Type	Constraints	Description
`msisdn`	String(20)	NOT NULL, indexed	Phone number
`nin`	String(20)	NOT NULL, indexed	National Identification Number
`is_active`	Boolean	NOT NULL, default=TRUE	FALSE after delinking
`source`	Enum(NINLinkageSource)	NOT NULL, default=NIMC_API	NIMC_API, MANUAL, BULK_UPLOAD
`linked_date`	DateTime(tz)	NOT NULL	When NIMC linked this NIN to MSISDN
`unlinked_date`	DateTime(tz)	nullable	When the linkage was delinked

Used by:

POST /nin-linkages/verify — Check if an MSISDN has an active NIN linkage
POST /nin-linkages/bulk-check — Batch check multiple MSISDNs in a single query (no N+1)
NINLinkageService.unlink() — Sets is_active=FALSE during delink execution

4. bvn_linkages

Tracks MSISDN-to-BVN bindings sourced from NIBSS. Same soft-delete pattern as NIN linkages. Includes bank_code to identify which financial institution holds the linkage.

Column	Type	Constraints	Description
`msisdn`	String(20)	NOT NULL, indexed	Phone number
`bvn`	String(20)	NOT NULL, indexed	Bank Verification Number
`is_active`	Boolean	NOT NULL, default=TRUE	FALSE after delinking
`bank_code`	String(10)	nullable	Financial institution code (e.g. 007)
`source`	Enum(BVNLinkageSource)	NOT NULL, default=NIBSS_API	NIBSS_API, MANUAL, BULK_UPLOAD
`linked_date`	DateTime(tz)	NOT NULL	When NIBSS linked this BVN to MSISDN
`unlinked_date`	DateTime(tz)	nullable	When the linkage was delinked

5. delink_requests

Workflow orchestration table. Each record represents a request to delink a recycled SIM from old NIN/BVN bindings. Implements a state machine.

Column	Type	Constraints	Description
`id`	Integer	PK, indexed	Unique request identifier
`recycled_sim_id`	Integer	FK(recycled_sims.id), NOT NULL	Which SIM is being delinked
`request_type`	Enum(DelinkRequestType)	NOT NULL, default=BOTH	NIN, BVN, or BOTH
`status`	Enum(DelinkRequestStatus)	NOT NULL, default=PENDING	Current workflow state
`initiated_by`	Integer	FK(users.id), NOT NULL	Operator who created the request
`approved_by`	Integer	FK(users.id), nullable	Admin who approved/rejected
`reason`	Text	nullable	Justification for the delink
`error_message`	Text	nullable	Failure details if FAILED

State Machine:

                ┌─────────► CANCELLED
                │
PENDING ────► PROCESSING ────► COMPLETED
                │                   │
                └──────► FAILED     │
                                    ▼
                          recycled_sims.cleanup_status = COMPLETED
                          nin_linkages.is_active = FALSE
                          bvn_linkages.is_active = FALSE
                          notifications created for affected parties

Side effects on completion:

recycled_sims.cleanup_status updated to COMPLETED
nin_linkages matching the SIM’s MSISDN are soft-deleted
bvn_linkages matching the SIM’s MSISDN are soft-deleted
notifications created for former owner, bank, and NIMC

6. notifications

Tracks multi-channel notification dispatch to affected parties during the delink workflow.

Column	Type	Constraints	Description
`delink_request_id`	Integer	FK(delink_requests.id), NOT NULL	Which delink triggered this
`recipient_type`	Enum(NotificationRecipientType)	NOT NULL	FORMER_OWNER, BANK, NIMC, NEW_OWNER
`channel`	Enum(NotificationChannel)	NOT NULL, default=EMAIL	SMS, EMAIL, API_CALLBACK
`recipient_address`	String(255)	NOT NULL	Phone number or email address
`status`	Enum(NotificationStatus)	NOT NULL, default=PENDING	PENDING, SENT, DELIVERED, FAILED

7. audit_logs (IMMUTABLE)

Append-only compliance trail. Every state-changing action is logged with before/after values, IP, and user agent. Records cannot be updated or deleted through the ORM.

Column	Type	Constraints	Description
`user_id`	Integer	FK(users.id), nullable	Who performed the action (null=system)
`action`	String(100)	NOT NULL, indexed	create, update, delete, login, etc.
`resource_type`	String(100)	NOT NULL, indexed	RecycledSIM, DelinkRequest, User, etc.
`resource_id`	String(50)	NOT NULL, indexed	ID of the affected resource
`old_value`	JSON	nullable	State before the change
`new_value`	JSON	nullable	State after the change
`ip_address`	String(45)	nullable	Client IP (IPv4 or IPv6)

PII handling: All log output passes through PIIMaskingFilter which redacts NIN/BVN/MSISDN patterns before writing to stdout. The JSON fields may contain PII but are only accessible to admin/auditor roles.

8. api_keys

Machine-to-machine authentication for external system integrations. Keys are stored as bcrypt hashes with constant-time comparison.

9. webhook_subscriptions

Event subscription management for external stakeholder sync. Banks and NIMC register callback URLs to receive delink event notifications. Callback URLs are validated server-side (SSRF protection blocks private IPs, loopback, and cloud metadata endpoints).

10. revoked_tokens

JWT blacklist table. Stores JTI claims of revoked tokens. Checked on every authenticated request and during token refresh. Expired entries are auto-cleaned via TokenRevocationService.cleanup_expired().

11. idempotency_keys

Request deduplication table. The IdempotencyMiddleware intercepts POST/PUT/PATCH requests carrying an Idempotency-Key header. If the key has been seen before, the stored response is replayed. Keys are scoped per-user to prevent IDOR.

End-to-End Data Flow

Step 1: SIM Ingestion

Telecom CSV ──► POST /recycled-sims/bulk ──► recycled_sims (up to 10,000 rows)
                                                cleanup_status = PENDING

Step 2: Linkage Verification

POST /nin-linkages/bulk-check ──► nin_linkages WHERE msisdn IN (...) AND is_active=TRUE
POST /bvn-linkages/bulk-check ──► bvn_linkages WHERE msisdn IN (...) AND is_active=TRUE

Both queries are batched into a single SQL WHERE IN clause (no N+1).

Step 3: Delink Request Creation

POST /delink-requests ──► delink_requests (status=PENDING, request_type=BOTH)
                              validates recycled_sim_id FK exists

Step 4: Admin Approval

POST /delink-requests/{id}/approve ──► status = PROCESSING (or FAILED on rejection)

Step 5: Delink Execution

DelinkService.complete_delink_request()
    ├── recycled_sims.cleanup_status = COMPLETED
    ├── nin_linkages.is_active = FALSE
    ├── bvn_linkages.is_active = FALSE
    ├── delink_requests.status = COMPLETED
    └── notifications created (SMS + API callbacks)

Step 6: Dashboard Reporting (via Read Replica)

GET /dashboard/stats ──► COUNT(*) recycled_sims GROUP BY cleanup_status
                         COUNT(*) nin_linkages WHERE is_active=TRUE
                         COUNT(*) bvn_linkages WHERE is_active=TRUE
                         COUNT(*) delink_requests GROUP BY status

Read Replica Routing

When DATABASE_READ_REPLICA_URL is set, dashboard queries are routed to the replica. All write operations use the primary. If no replica is configured, all queries fall back to the primary transparently.

Dependency	Engine	Routes
`get_db()`	Primary	All write routes, auth, CRUD operations
`get_read_db()`	Read replica	`GET /dashboard/stats`, `GET /dashboard/trends`

Retention and Cleanup

Table	Retention Policy	Cleanup Mechanism
`audit_logs`	`AUDIT_LOG_RETENTION_DAYS` (365)	`POST /retention/purge-audit-logs` (admin)
`revoked_tokens`	Until `expires_at` passes	`TokenRevocationService.cleanup_expired()`
`idempotency_keys`	5-second dedup window	Automatic expiry via `expires_at`
All other tables	No automatic purge	Manual via admin operations
