Reconix — Architecture

System Overview

System Architecture

Deployment Topology

                         Internet
                            |
                      [Load Balancer]
                       /           \
              [Frontend]           [Backend]
              Next.js 16           FastAPI + Gunicorn
              Port 3000            Port 8000
                   |                    |
                   |              +-----+-------+
                   |              |             |
                   |        [PostgreSQL]    [Redis]
                   |         Port 5432     Port 6379
                   |              |
                   |        [Read Replica]
                   |         (optional)
                   |
             [CDN / CloudFront]
              (optional, static assets)

Component Architecture

Backend (FastAPI)

fast_api/
├── main.py                      # App factory, lifespan, middleware stack
├── api.py                       # Router aggregating 13 route modules
├── config.py                    # Pydantic settings with production validation
├── db.py                        # Async engine factory, BaseRepository[T], read replica
├── gunicorn.conf.py             # Gunicorn worker config (CPU*2+1, preload, max_requests)
├── websocket.py                 # ConnectionManager for real-time notifications
├── logging_config.py            # Structured JSON logging + PII masking
├── crypto.py                    # Application-level PII field encryption
├── auth/authlib/                # OAuth2, JWT, bcrypt, RBAC, 19 permissions
├── routes/                      # 13 route modules
│   ├── auth.py                  # Login, refresh, logout
│   ├── recycled_sims.py         # SIM CRUD, bulk upload (10,000 records), detect
│   ├── nin_linkages.py          # NIN verification, bulk-check
│   ├── bvn_linkages.py          # BVN verification, bulk-check
│   ├── delink_requests.py       # Delink workflow (create/approve/reject/cancel)
│   ├── notifications.py         # Multi-channel dispatch (SMS/email/API)
│   ├── audit_logs.py            # Immutable audit trail
│   ├── dashboard.py             # Stats and trends (read replica)
│   ├── webhooks.py              # Stakeholder sync
│   ├── retention.py             # Audit log purge
│   ├── data_subject.py          # NDPR data subject rights
│   ├── identity.py              # Unified MSISDN status, linkages, corroboration
│   └── ws.py                    # WebSocket real-time notifications
├── services/                    # 18 business services (including adapters/)
│   └── sync_orchestrator.py     # Cross-service sync coordination
├── models/                      # 12 SQLAlchemy models (+ stakeholder)
├── schemas/                     # 12 Pydantic schema modules
├── middleware/                   # 14 security/observability middleware
├── validators/                  # Nigerian data validators (NIN/BVN/MSISDN/IMSI)
├── alembic/                     # Database migration scripts (Alembic)
└── exceptions/                  # 10 custom exception types + handlers

Frontend (Next.js)

src/
├── app/                         # App Router pages (9 routes)
├── components/                  # 22 feature components
├── hooks/                       # useAuth, usePagination, useWebSocket, etc.
├── services/                    # 9 API service modules
├── types/                       # TypeScript type definitions
└── tests/                       # Integration tests

Middleware Pipeline (14 layers)

Every request passes through these middleware layers in order:

HTTPS Enforcer — Redirect HTTP to HTTPS in production
Sentry — Error capture and performance monitoring
Tracing — Distributed trace ID propagation (X-Trace-ID, X-Span-ID)
Sunset Headers — API versioning deprecation with RFC 8594 Sunset header
Size Limiter — Block request bodies exceeding 10 MB
Input Guard — Block SQLi, XSS, command injection, path traversal patterns
Request ID — Assign/propagate correlation IDs via X-Request-ID
Security Headers — CSP, HSTS, X-Frame-Options, Permissions-Policy
Custom Security — TRACE/TRACK blocking, Content-Type enforcement, COOP/CORP/COEP
Metrics — Prometheus request counters and latency histograms
Idempotency — User-scoped replay protection for POST/PUT/PATCH
Deduplication — SHA-256 fingerprint dedup within 5-second window
Audit Logger — Structured JSON with PII auto-masking
CORS — Strict origin allowlist (HTTPS-only in production)

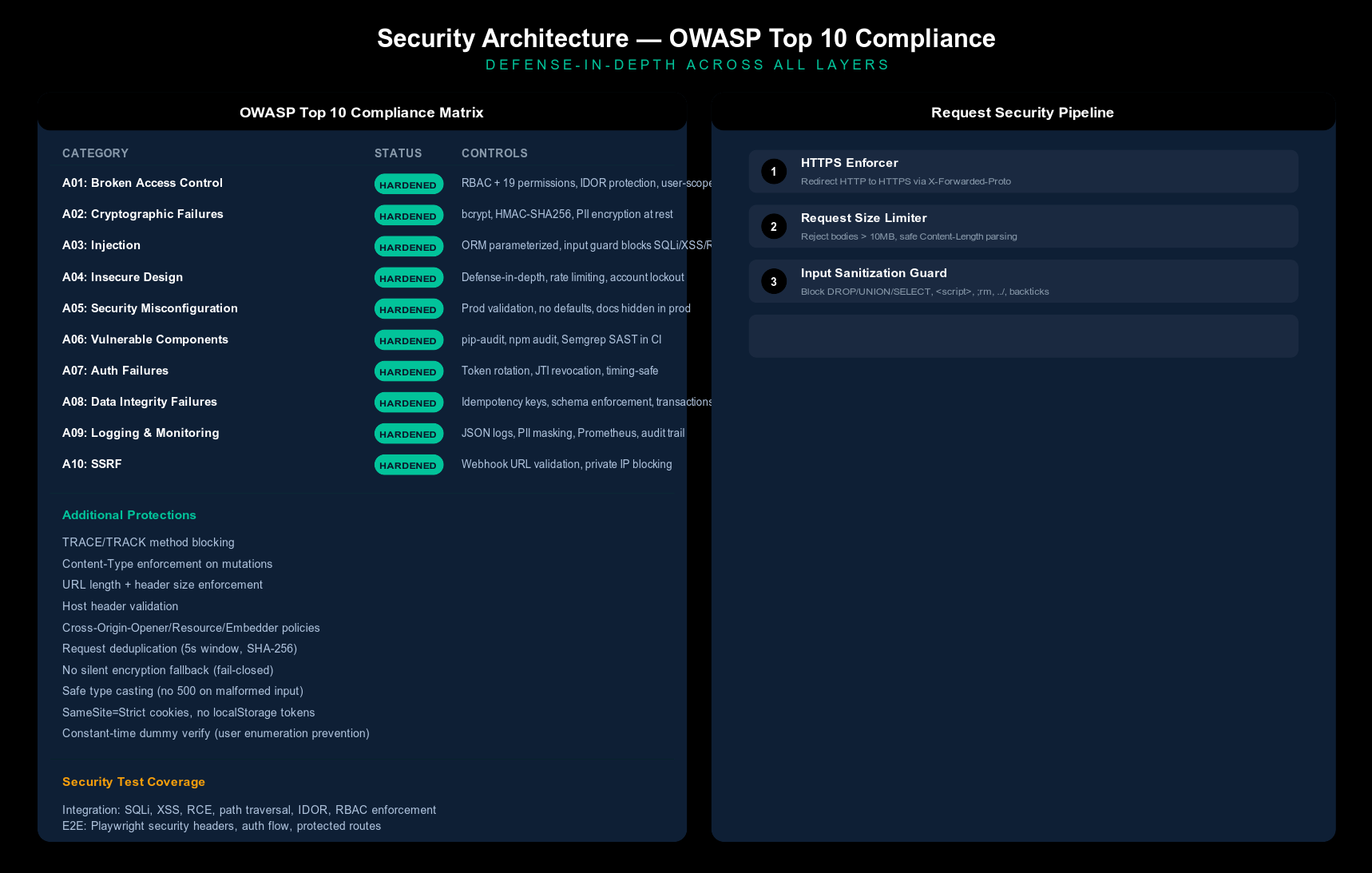

Security Architecture

Authentication Flow

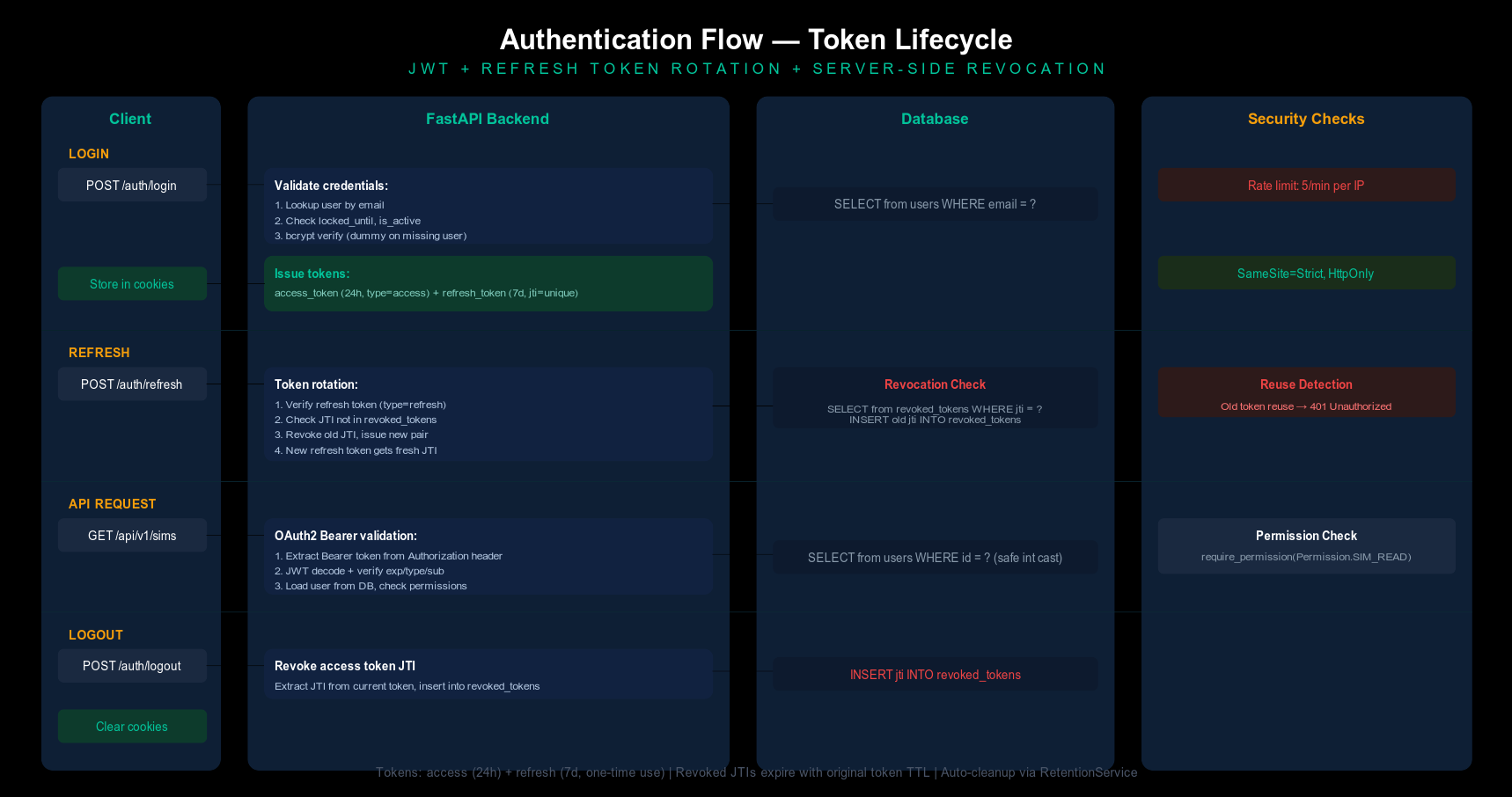

Token Lifecycle

Client                  Backend                  Database
│ -- POST /auth/login -->  │                           │
│ ------------------------ │ ------------------------- │
│                          │ <- user record ---------- │
│ <- access + refresh ---  │                           │
│                          │                           │
│ -- POST /auth/refresh -> │                           │
│                          │ -- check jti revoked? --> │
│                          │ -- revoke old jti ------> │
│ <- new access+refresh -- │                           │
│                          │                           │
│ -- POST /auth/logout --> │                           │
│                          │ -- revoke access jti ---> │
│ <- 200 OK -------------  │                           │

Security hardening applied:

Constant-time dummy verify on non-existent user (timing attack mitigation)
Account lockout after 5 failed attempts (15 min)
Rate limiting: 5/min on auth endpoints, 100/min general
No user enumeration (same error for invalid email vs password)
Refresh tokens rotated on every use (one-time use)
JWT stored in SameSite=Strict cookies (not localStorage)
Production CSP removes unsafe-eval from script-src

Deployment Architecture

                    Internet
                       │
                 [Load Balancer]
                   /         \
          [Frontend]         [Backend]
          Next.js 16         FastAPI + Gunicorn
          Port 3000          Port 8000
                               │
                      ┌────────┴────────┐
                      │                 │
                [PostgreSQL 16]   [Read Replica]
                 Port 5432         (optional)
                      │
                   [Redis]
                 Port 6379
               (optional cache)

Frontend: Multi-stage Node.js build, standalone Next.js output, CDN asset prefix
Backend: Python 3.13-slim, Gunicorn with Uvicorn workers, non-root user
Database: PostgreSQL 16 with persistent volume, connection pooling (20+20)
Caching: Redis with in-memory fallback when not configured
Secrets: HashiCorp Vault with environment variable fallback
Scripts: seed_admin.py (initial admin user), check_secrets.py (pre-commit secret scanner)
Health probes: /health/live (liveness, always 200), /health/ready (readiness, 503 until DB connected)
Detection: /recycled-sims/detect triggers a scan that flags SIMs with stale linkages
CI/CD: GitHub Actions — lint, test, type-check, Docker build, security scan
